YH1300 Series OCXO

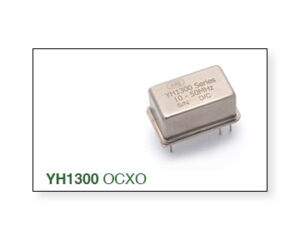

YH1300 OCXO image

Greenray Industries' YH1300 Series OCXOs offer low g-Sensitivity and tight stability.

Features

  • Low g-Sensitivity to 7 x 10-11/g

  • Supply Voltage: 3.3, 5 or 12Vdc

  • Miniature 20.3 x 12.7mm package

  • Frequency Range: 10 - 50 MHz

  • CMOS Squarewave or Sinewave Output
Benefits

  • Stable reference source for high shock & vibration environments

  • Improved phase noise performance

  • Miniature, DIP package

  • Can be screened to MIL-PRF-55310

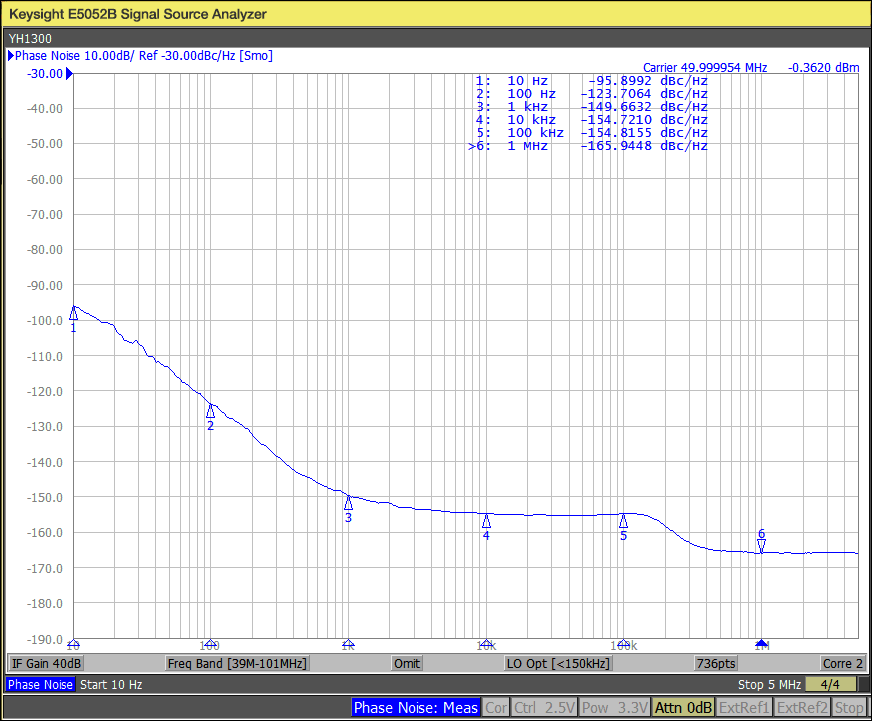

YH1300 OCXO 50MHz; Typical Phase Noise

yh1300 50 MHz_phase noise plot

pdf icon Download YH1300 Datasheet (pdf file, English)

To help determine if the YH1300 OCXO is right for your application, click here.

To view and/or download a YH1300 Series 3D (SnapEDA) model, click here.
