T70 Series TCXO

Includes T71, T72 & T73 TCXOs

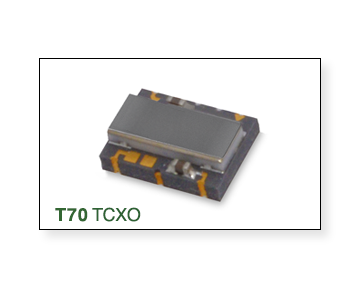

T70 Series TCXO img

Greenray Industries' T70 Series TCXOs offer reliable, precision performance for mobile, battery-powered apps. It has been developed as a reference oscillator for critical timing applications that require tight temperature stability, low supply current, a very rugged package, and a small footprint. The T70 Series is well-suited to use in exploration and tracking equipment applications.

Features

  • Small, extremely rugged, 7.0 x 5.0mm package

  • Frequency: 10 to 50MHz

  • Temperature Stability as low as ±0.1ppm

  • Innovative ceramic package design

Benefits

  • Performs under high shock & vibration conditions, extreme temperature ranges

  • g-Sensitivity 2.5 x 10-9 (Std.) Low g-Sensitivity Option 7 x 10-10 (low-G option)

  • Offers very low current draw, to 1mA

pdf icon Download T70 Series TCXO Datasheet (pdf file, English)

To help determine if a T70 Series TCXO is right for your application, click here.

To view and/or download a T70 Series 3D (SnapEDA) model, click here.

To view and/or download a T71 Series 3D (SnapEDA) model, click here.

To view and/or download a T72 Series 3D (SnapEDA) model, click here.

To view and/or download a T73 Series 3D (SnapEDA) model, click here.
