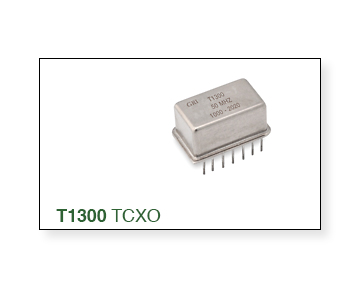

T1300 Series TCXO

Greenray Industries' T1300 TCXO offers ultra-low acceleration sensitivity for vibration and shock sensitive applications. When operating under random vibration, the T1300 can offer phase noise improvements of more than 40dB compared to conventional TCXOs - and better performance than most OCXOs.

Features

  • Proprietary crystal & oscillator design for optimal performance

  • Frequency: 10 - 50MHz

  • EFC for precise tuning or phase locking apps

  • 20.3 x 12.7mm, ruggedized package

  • +3.3 or 5Vdc Supply

  • CMOS output

Benefits

  • g-Sensitivity of <0.05 ppb (5 x 10-11/g of applied acceleration force)

  • Relatively impervious to effects of shock and vibration

  • 100% screened for g-Sensitivity performance

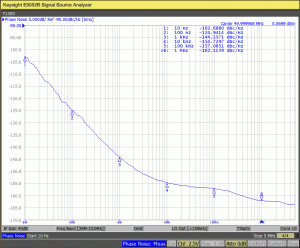

T1300 TCXO 50MHz; Typical Phase Noise

t1300 tcxo 50MHz_phase noise plot

pdf icon Download T1300 TCXO Datasheet (pdf file, English)

To help determine if the T1300 TCXO is right for your application, click here.
